Hardcore! Champions League finals: 45 cameras on and off the field, with 8 super slow motion cameras

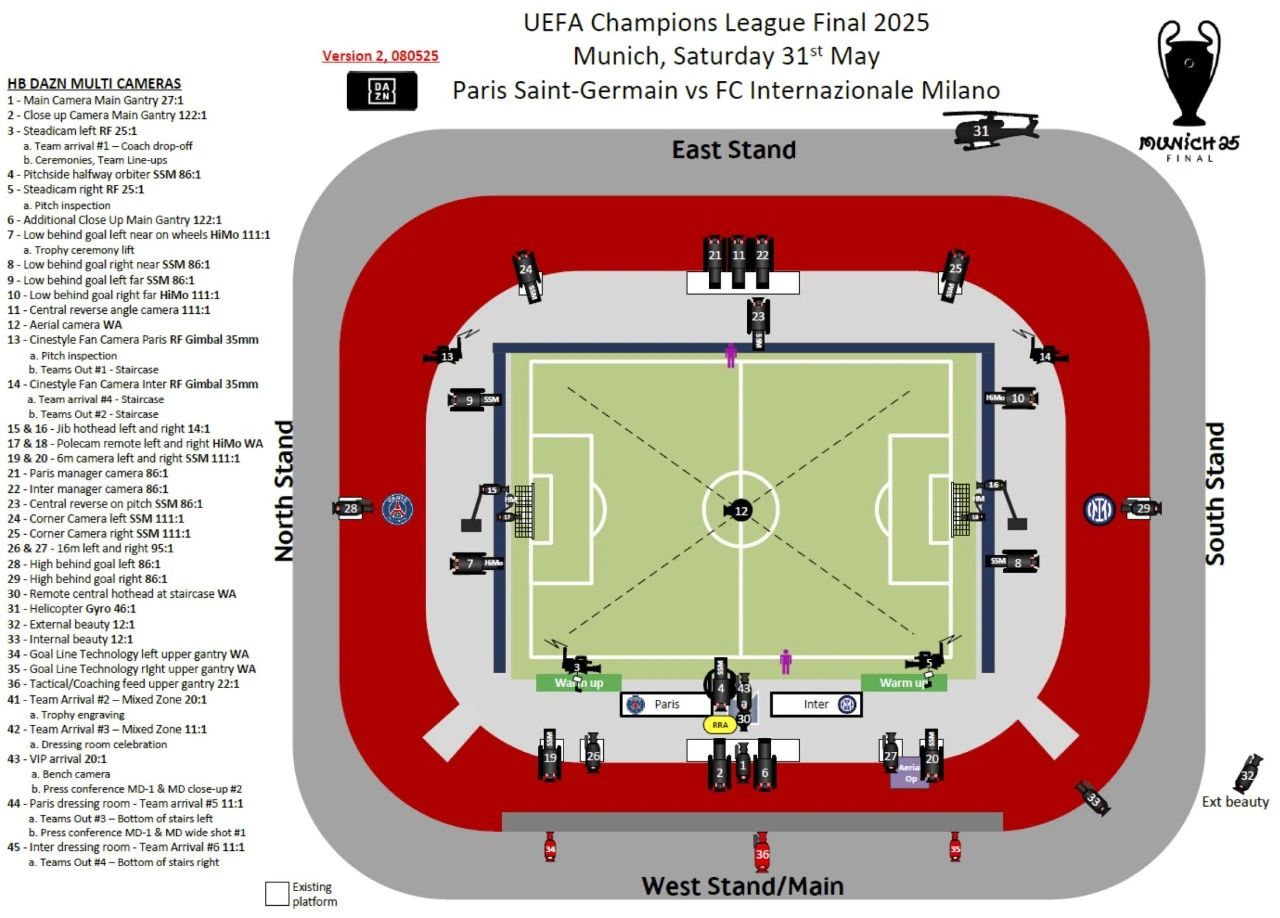

UFF official broadcasting machine bitmap

Photography professional media cameraman network published a post to interpret the broadcasting machine bitmap and equipment configuration for the Champions League final in the early morning of tomorrow.

The broadcaster of this Champions League final is DAZN Dach, and the technology supplier is TVN. The following are some statistics:

1-A total of up to 45 cameras were invested inside and outside the court, of which 42 were used for television broadcasts, 2 were used for goal line assisting referees, and 1 provided a return signal for tactical monitoring of the coach's seat.

2-Of the 42 broadcast cameras, there are 33 on the field, and the rest of the cameras are used for news collection, as well as shooting scenes such as player arrival, VIP seats, locker rooms, etc.

3-There are 8 super slow motion cameras (SSM) and 2 high-speed cameras (HS) in the fixed camera.

4-Special camera positions include 2 electronically controlled rockers, 2 sets of fishing rod rockers, 2 sets of Stenickons, 2 sets of movie-sensing aircraft, 1 set of aerial cable car camera system, and 1 aerial photography helicopter.

5-There are 135 media seats in the venue for live commentary on television, radio and social media.

6-The optical cable used for broadcasting exceeds 100 kilometers

7-like last year, it is not made in 4K, but is made in 1080p50-HDR HLG. The match signal will be available in 1080p50-HDR and 1080p50-SDR with built-in Dolby Surround and Dolby Atmos.

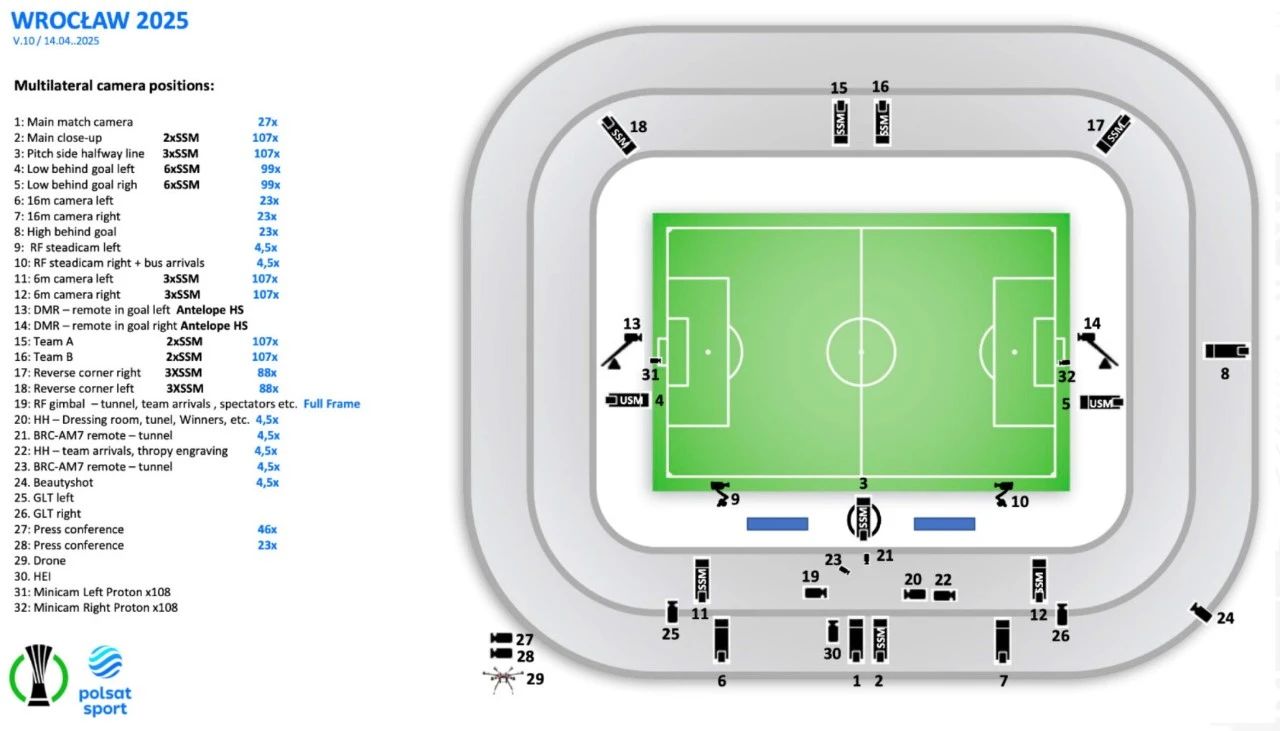

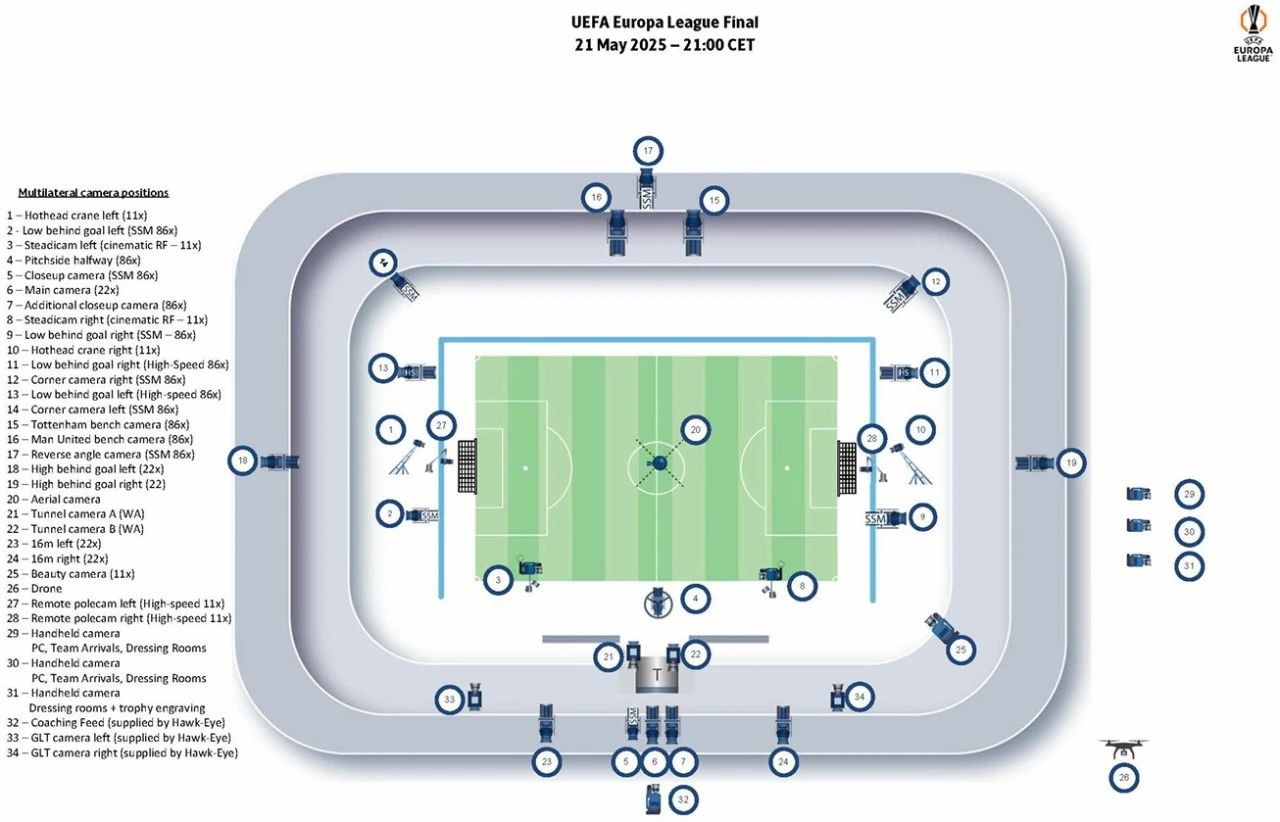

UEFA has three major club events, including the top Champions League, the Europa League and the European Union. The level of the event is different, the scale of the broadcast, the production standards, and the configuration of the camera are all different. Finally, the camera maps of the UEFA Cup and the UEFA League can be used for comparison and reference:

European Cup final

European Cup final

(Photoser Network)
